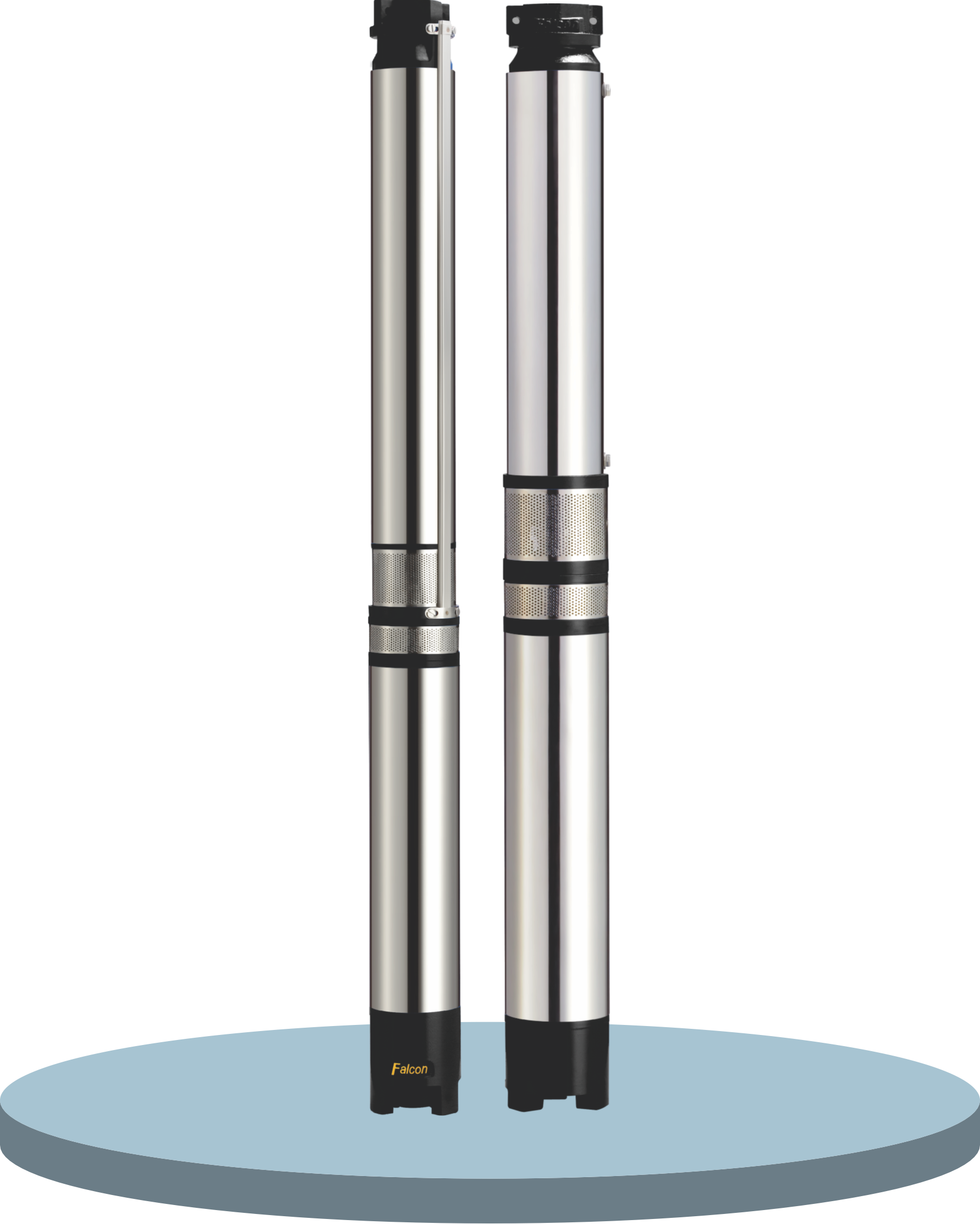

This is a V4 Falcon Submersible Pump.
*Power Range :0.37 kW to 4.4 kW (0.50 HP to 6.0 HP)
*Speed : 2880 RPM
*Version : Single Phase 160V to 230V, Three Phase 350 to 415V, 50Hz AC Supply. (Single Phase available in 0.5 HP to 5 HP/Three phase available in 1 HP to 6 HP).
*Head Range : 10 Mtr. to 340 Mtr.
*Dishcharge Range : 450 LPM to 12 LPM
*Outlet Size in inch : 1.0', 1.25', 1.5'& 2.0'.
*Degree of Protection : IP 58
*Direction of Rotation Minimum cooling : Counter clockwise From driving end - 1ph: Electrically Reversible - 3ph
*Thrust load : 0.37kW - 0.75 kW - 650 Ibs , 1.1 kW , 1.5 kW-1000 Ibs, 2.2 kW - 7.5 kW - 1500 Ibs.
*Flow along the motor : 0.15m/Sec.
*Type of Duty : S1 (countinues)
*Method of starting : 1ph-capacitor Start Capacitor Run (CSCR): 3ph- Direct Online (D.O.L)
*Maximum Starts per hour : 20 times
