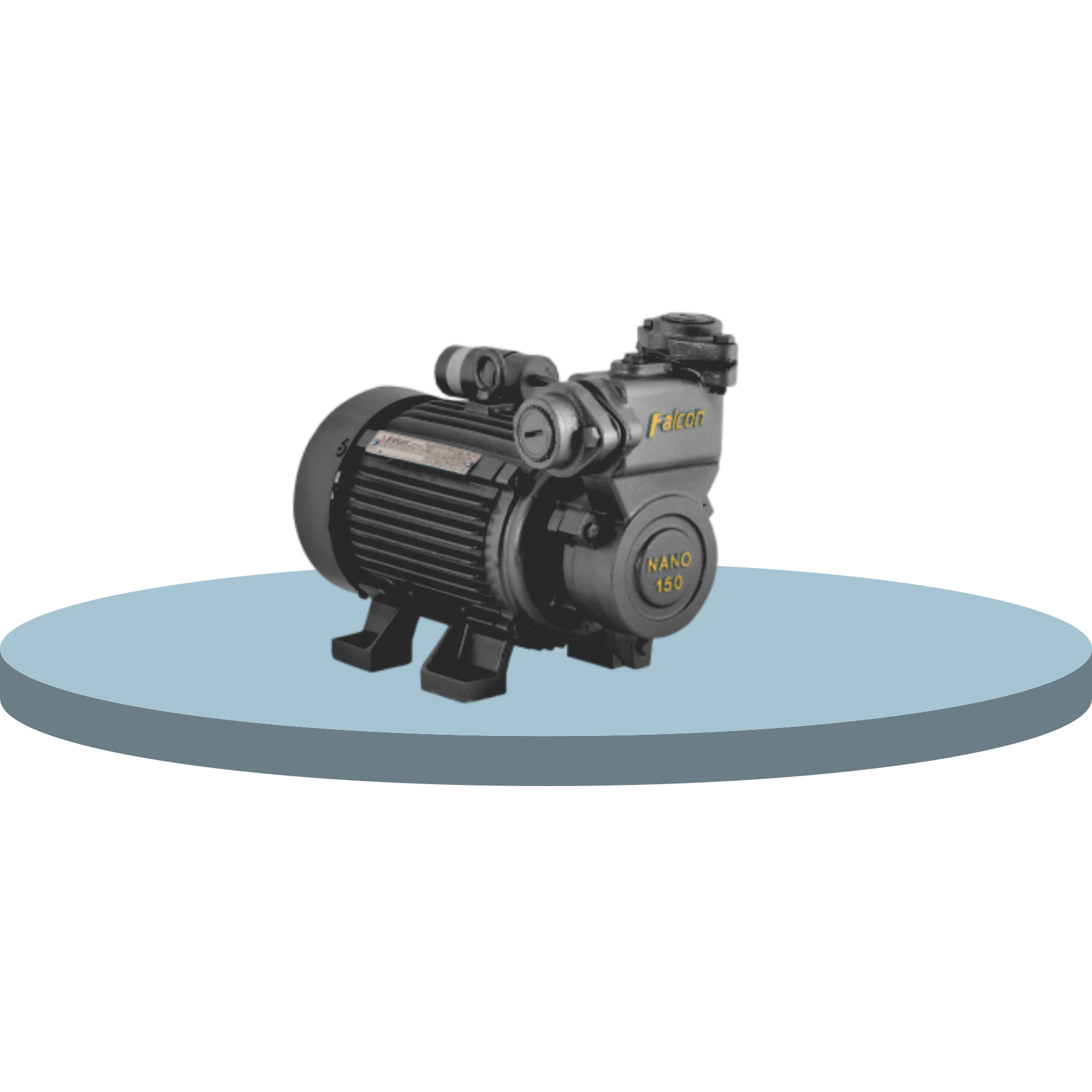

THIS IS A FALCON NANO 150 C SELF PRIMING MONOBLOCK PUMP.
IT HAS AN INBUILT THERMAL OVERLOAD PROTECTOR IN ALL SINGLE PHASE PUMPSETS.
THE PUMP IS DESIGNEDFOR WIDE VOLTAGE OPERATION.
IT IS SUITABLE FOR DOMESTIC, FARM, GARDEN, AND INDUSTRIAL APPLICATIONS.
IT FEATURES HIGH OPERATING EFFICIENCY, WHICH RESULTS IN LOWER POWER CONSUMPTION.
POWER RANGE : 1.1kW(1.5 HP)
VERSION : SINGLE PHASE , 200-240V, 50 Hz AC SUPPLY
SPEED : 2880 RPM
MAXIMUM TOTAL HEAD : 50 Mtr.
MAXIMUM FLOW RATE : 6100 LPH
MAXIMUM SUCTION LIFT : 6 Mtr.
DEGREE OF PROTECTION : IP 44
CLASS OF INSULATION : B
MAXIMUM AMBIENT TEM : 40 C
SEALING : MECHANICAL SEAL
TYPE OF DUTY : S1 (CONTINUOUS)
DIRECTION OF ROTATION : SINGLE PHASE, CLOCKWISE FROM DRIVING END
NOMINAL PUMPSET SIZE (SUCTION * DELIVERY IN INCH) : 1''*1'
