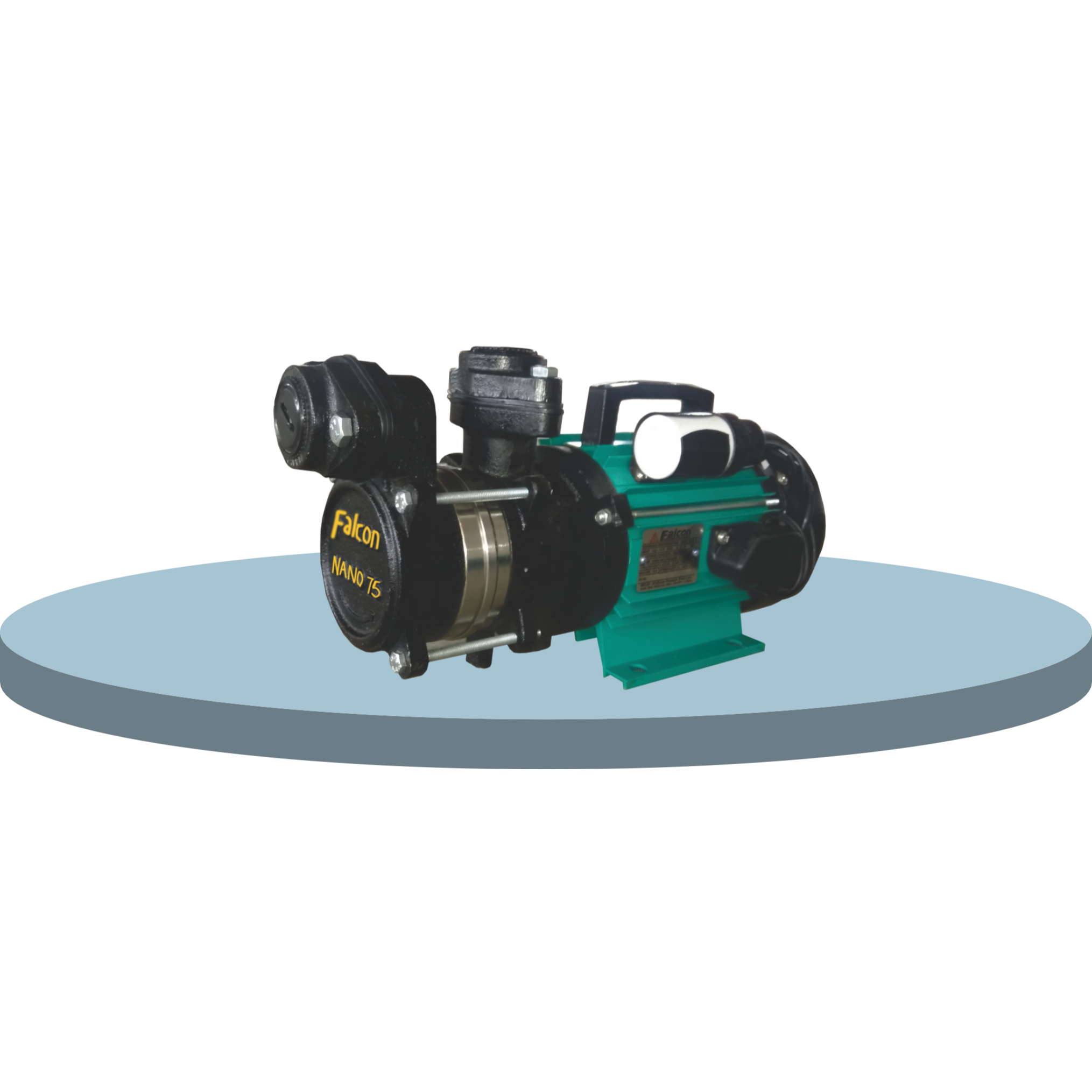

THE IMAGE SHOWS A FALCON NANO 75 SELF PRIMING MONOBLOCK PUMP.
POWER RANGE : 0.55 kw (0.75)
VERSION : SINGLE PHASE , 200-240V, 50Hz AC SUPPLY
SPEED : 2880 RPM
MAXIMUM TOTAL HEAD : 30 Mtr.
MAXIMUM FLOW RATE : 1950 LPH
MAXIMUM SUCTION LIFT : 8 Mtr.
DEGREE OF PROTECTION : IP 44
CLASS INSULATION : B
MAXIMUM ABIENT TEM . : 40 C
SEALING : MECHANICAL SEAL
TYPE OF DUTY : S1 (CONTINUOUS)
DIRECTION OF ROTATION : SINGLE PHASE , CLOCK WISE FROM DRIVING END
NORMAL PUMPSET SIZE (SUCTION X DELIVERY IN INCH) : 1'*1'
