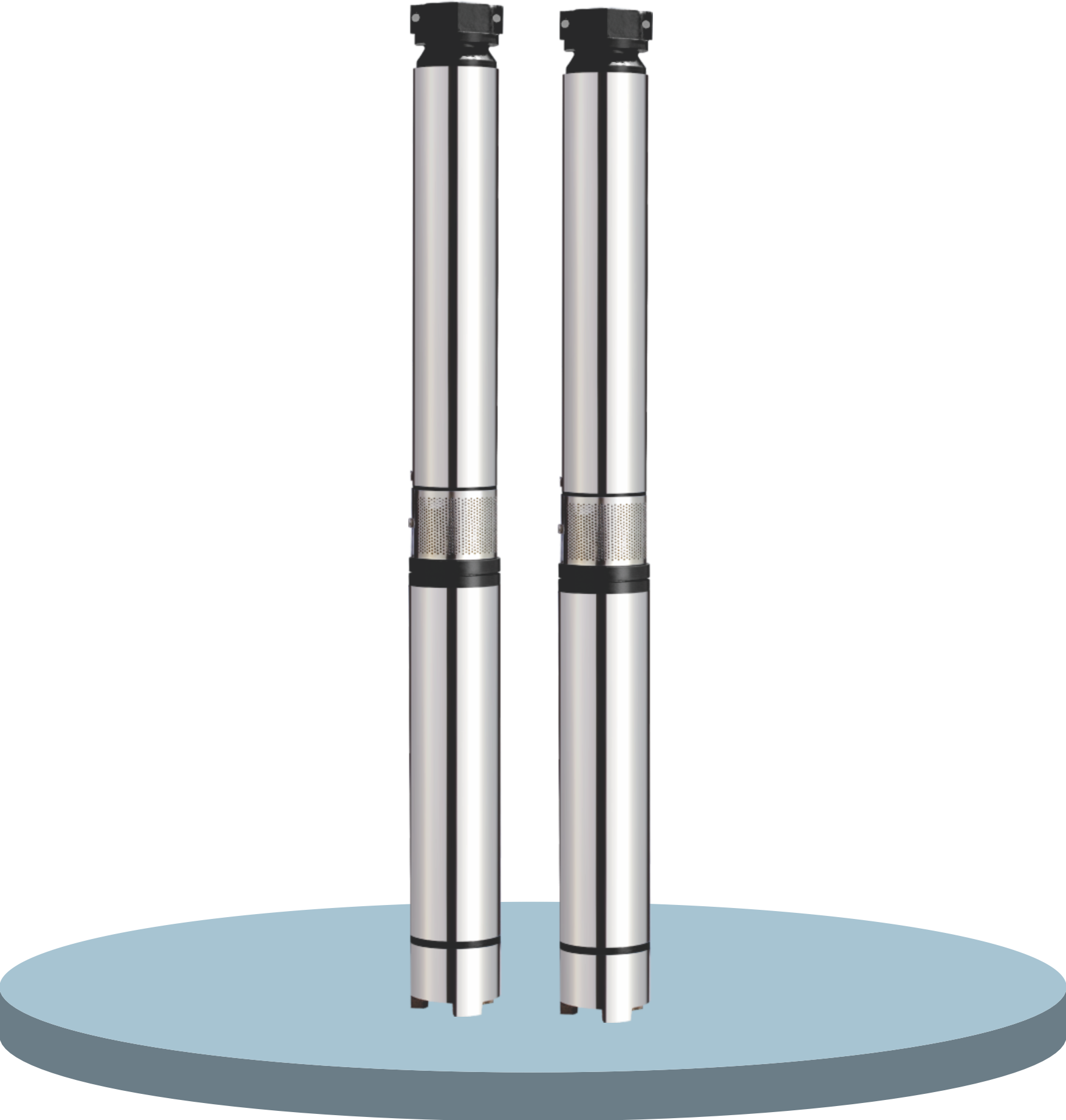

THE IMAGE DISPLAYS TWO UNITS OF A FALCON SUBMERSIBLE PUMP.
A SUBMERSIBLE PUMP IS AN ELECTRIC PUMP THAT IS FULLY SUBMERGED IN THE WATER IT IS DESIGNED TO PUSH TO THE SURFACE. THE MOTOR IS HERMETICALLY SEALED AND CLOSE-COUPLED TO THE PUMP BODY.
POWER : 0.37KW TO 1.1 KW (0.50 HP TO 1.5HP)
SPEED : 2880 RPM
VERSION : SINGLE PHASE 160V TO 230V, 50HZ, AC SUPPLY
HEAD RANGE : 14 MTR. TO 96 MTR.
DISCHARGE RANGE : 70 LPM TO 15 LPM
OUTLET SIZE IN INCH : 1.25'
DEGREE OF PROTECTION : IP 58
DIRECTION OF ROTATION : COUNTER CLOCK WISE FROM DRIVING END 1HP
FLOW ALONG THE MOTOR : 0.15m/sec.
TYPE OF DUTY : S1( continues)
METHOD OF STARTING : 1PH-CAPACITOR
MAXIMUM STARTS PER HOUR : 20 TIMES
