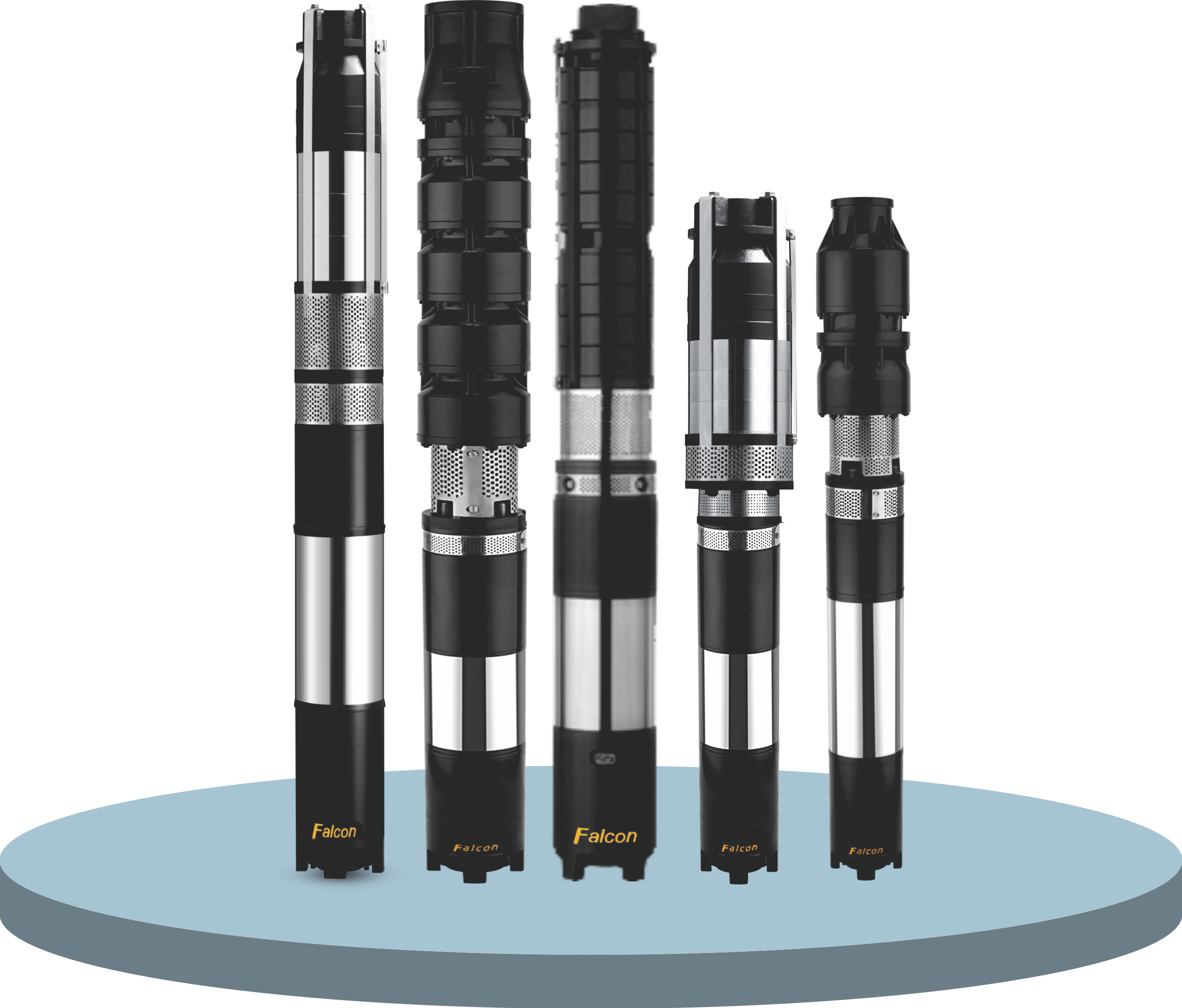

THE IMAGE DISPLAYS A RANGE OF FALCON SUBMERSIBLE PUMPS , WHICH ARE VERSATILE, HIGH - PERFORMANCE PUMPING SOLUTIONS DESIGNED FOR EFFICIENT WATER EXTRACTION FROM DEEP SOURCES.
POWER RANGE : 7.5kW TO 75kW (10 HP TO 100 HP)
SPEED : 2880 RPM
VERSION : THREE PHASE 350 TO 415 V, 50Hz AC SUPPLY.
HEAD RANGE : 12 MTR. TO 440 MTR.
DISCHARGE RANGE : 2400 LPM TO 300 LPM.
OUTLET SIZE IN INCH : 4.0' & 5.0'.
DEGREE OF PROTECTION : IP 58
DIRECTION OF ROTATION : COUNTER CLOCKWISE FROM DRIVING END -1 HP ELECTRICALLY REVERSIBLE -3 HP
THRUST LOAD MINIMUM COOLING : 7.5 kW -30 kW-10000 IBS
FLOW ALONG THE MOTOR : 0.15M/SEC.
TYPE OF DUTY : S1
METHOD OF STARTING : STAR DELTA (SD)
MAX. START PER HOUR : 20 TIMES
