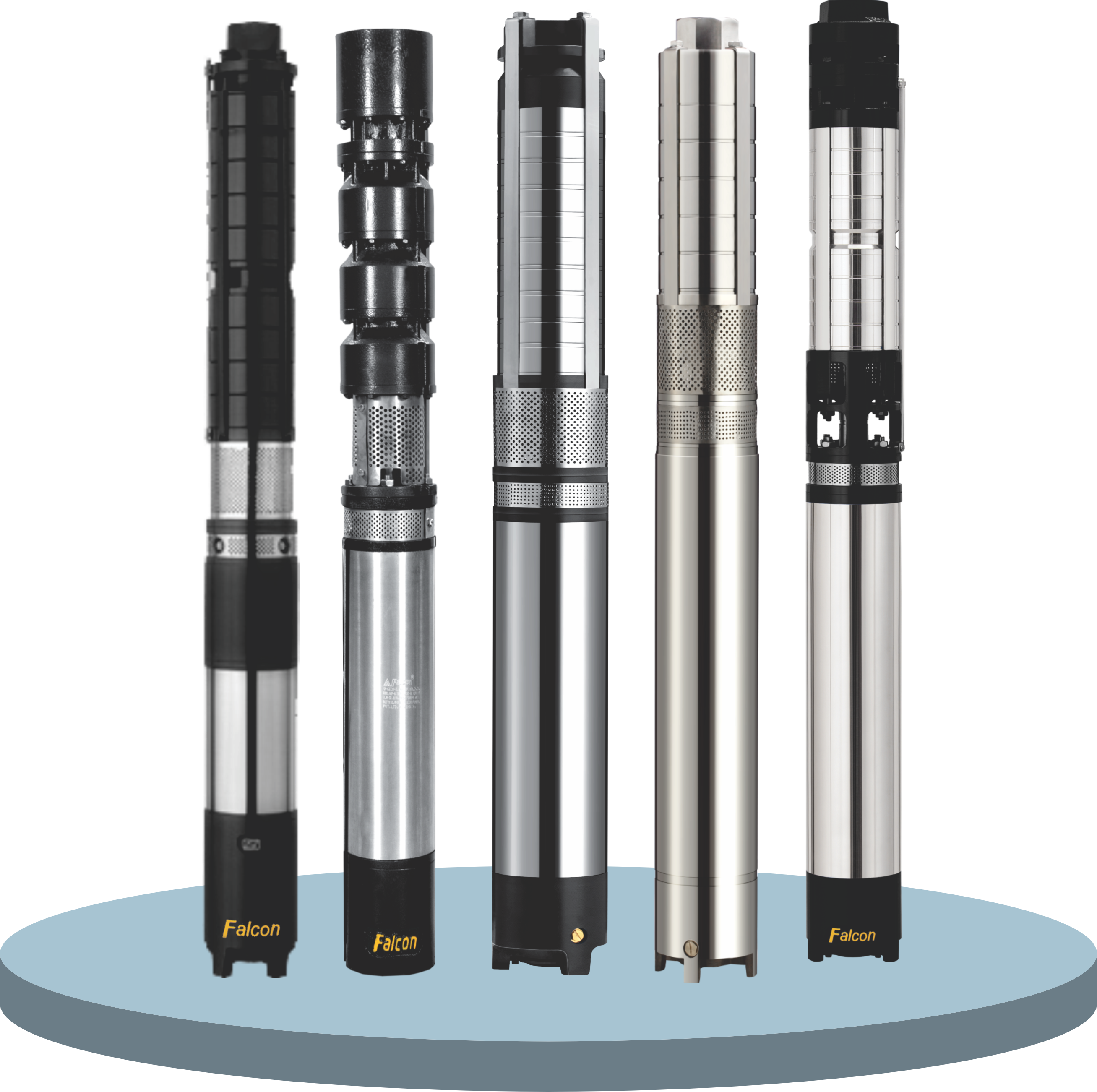

The Falcon 'V6'submersible pump series, which are 6-inch diameter (150mm) pumps primarily designrd for agricultural and industrial borewell applications. They are built for high efficiency and durability.
General Features
Application : Suitable for 6-inch and above diameter boreholes.
Bearings : Equipped with wth extremely hardwearing, water-lubricated carbon thrust bearing with heavy tiltingpads stainless steel AISI-304 grade, ensuring zero maintenance operation.
Voltage Operation : Designed for wide voltage operation .
Durability : Deep- Drawn type pump design ensures perfect alignment increasing the pumpsets life.
Materials : Features CED coated cast iron parts, and fully stainless steel (SS-304 Grade) options are available.
Performance : Known for vibration - free performance , high head, high discharge , and high efficiency .
Specification
Power Range : Available from 3 HP to 40 HP (2.2 kW to 30 kW).
Head Range : Ranges from 12 mtr to 600 mtrs.
Dishcharge Range : Varies from 10 LPM up to 1320 LPM , Depending on thge specific model and head requirement .
Phases : Available in single phase and three phase versions.
Degree of Protection : Rated at IP 58.
Speed : Operates at approximately 2850-2900 RPM.
