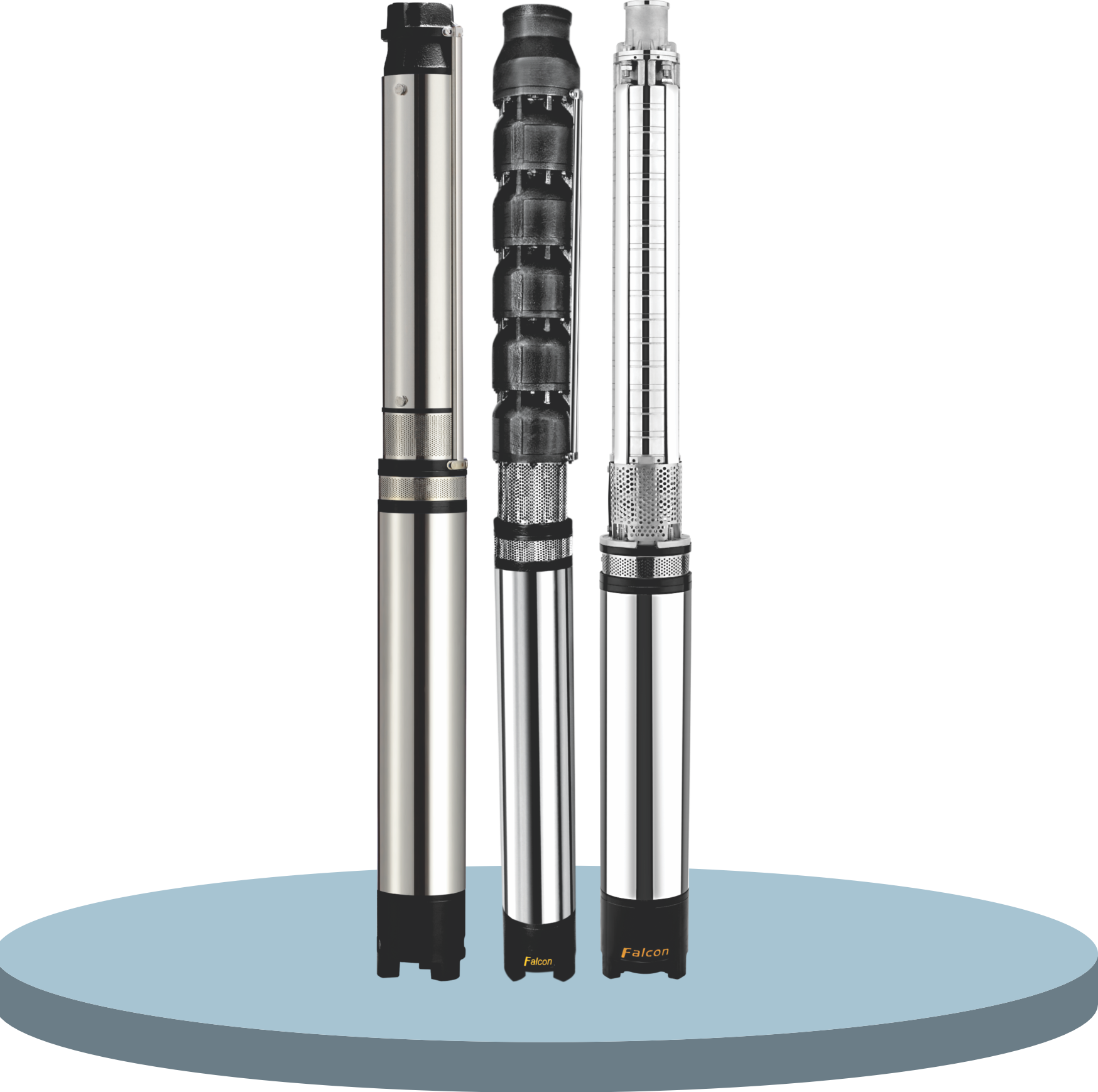

The falcon V5 submersible pump is a durable and efficient product
designed for various water supply applications, including domestic, agriculture, and industrial use.
*Power Range : 2.2 kW to 9.3 kW (3 HP to 12.5 HP)
*Speed : 2880 RPM
*Version : Single Phase 180V to 230V, Three phase 350 to 415V, 50Hz AC Supply (Single Phase available in 3 HP to 5HP)
*Head Range : 12 Mtr. to 640 Mtr.
*Discharge Range : 690 LPM to 80 LPM
*Outlet Size in Inch : 1.5' , 2.0' & 2.5'
*Degree of protection : IP 58
*Direction of Rotation Minimum Cooling : Counter clockwise From driving end - 1ph: Electrically Reversible - 3ph
*Thrust Load : 2.2 kW - 4.5 kW - 3500 Ibs, 5.5 kW to 9.3 kW - 6000 Ibs
*Flow along the motor : 0.15 m/Sec.
*Type of duty : S1(continues)
*method of starting : 1ph-capacitor start Capacitor Run (CSCR) up to 2.2 kW , Direct online ( D.O.L) upto 5.5 kW, star Delta (SD) upto 9.3 kW
*Max. start per hour : 20 times
