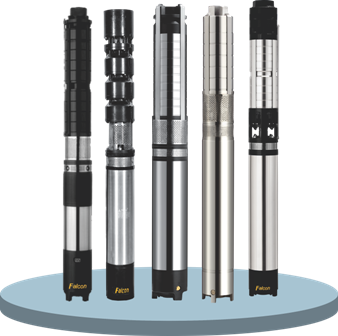

Falcon 6" Submersible Pumpset
Falcon pumps having a wide range of Models suitable for 6" and above dia. borewell.
Material of construction- Motor
Housing Set : Cast Iron / SS-304
Motor Base : Cast Iron / SS-304
Thrust Bearing Assembly : SS-420 & Carbon
Motor Bush : LTB-4 / Teflon
Motor Shaft : SS-420
Oil Seal : Nitrile Butyl Rubber
Material of Construction - Pump
Pump Shaft : SS-410
Suction : Cast Iron
Pump Sleeve : SS-410
Counter Bush : SS-420
Bowl : SS-304/ SS-410/ Cast Iron
Impeller : SS-304/ SS-410/ Nylon
Check Valve Housing : (Outlet) Cast Iron/ SS-304
60 feet Head per stage in radial flow series
Power Range : 3.0HP to 40HP (2.2kW to 30kW)
Suitable for 180V to 230V in Single Phase, 350V to 415V in Three Phase, 50Hz AC Supply.
Falcon - A Machine for Mankind...
World Class Pumping Technology
Falcon pumps having a wide range of Models suitable for 6" and above dia. borewell.
Material of construction- Motor
Housing Set : Cast Iron / SS-304
Motor Base : Cast Iron / SS-304
Thrust Bearing Assembly : SS-420 & Carbon
Motor Bush : LTB-4 / Teflon
Motor Shaft : SS-420
Oil Seal : Nitrile Butyl Rubber
Material of Construction - Pump
Pump Shaft : SS-410
Suction : Cast Iron
Pump Sleeve : SS-410
Counter Bush : SS-420
Bowl : SS-304/ SS-410/ Cast Iron
Impeller : SS-304/ SS-410/ Nylon
Check Valve Housing : (Outlet) Cast Iron/ SS-304
60 feet Head per stage in radial flow series
Power Range : 3.0HP to 40HP (2.2kW to 30kW)
Suitable for 180V to 230V in Single Phase, 350V to 415V in Three Phase, 50Hz AC Supply.
Falcon - A Machine for Mankind...
World Class Pumping Technology
